Drag Strip and Dyno -The drag strip displays a countdown and timing light and measures your launch and reaction time. At the end of your run, you get a timeslip with the stats from the run. -Measures reaction time, 60' time, 330' time, 0-60 MPH, 1/8 mile ET, 1/8 mile speed, 1000' time, 1/4 mile ET, 1/4 mile speed. -If you use aftermarket performance parts, the new digital dyno feature will let you test horsepower and torque to measure their impact on your vehicle's performance-- just try out the dyno and see if those parts were worth the money! -Supports both English and Metric units of measurement.
Data Logging -Currently supports over 160 generic OBD-II parameters, including O2 sensors. -Also supports all aux. input parameters available from the Innovate Motorsports LM-1 Wide Band O2 meter. -Also supports the AEM UEGO wide band O2 meter as an aux. input. -Also supports the TechEdge wide band O2 meter as an aux. input. -Also supports the PLX Devices iMFD Sensor Module as an aux. input. -Also supports the Zeitronix ZT-2 wide band air/fuel meter as an aux. input. -You can record and playback log files in real time (1ms logging accuracy). -You can save and load your log files for offline analysis. -Playback speed can be adjusted to play faster or slower than real time. -There are no restrictions on how much data you can log, it is only limited by how fast your OBD-II interface cable can send the data and by how much memory you have in your computer. -English and Metric (SI) unit measurement systems supported. -Customizable log file data export to .CSV file for easy viewing in other programs like Excel. -Export with real-time stamps for easy correlation with external data logs. -PIDs can be assigned priorities to speed up the data capture rate. -Full support for data log file bookmarks - if you notice the engine misfiring or some other problem, using the log file bookmarks you can just reach over and press F6 to add a bookmark into the logged data that is being recorded. Then you can come back at any time and see exactly where the bookmark is and view the surrounding frames of data to analyze the problem.
Trouble Codes -Read stored and pending Diagnostic Trouble Codes. -Clear the Check Engine or Service Engine Soon indicator light. -Read and clear stored Freeze Frame data. -Supports thousands of vehicle trouble code definitions.
Test Results -Read the status of Continuously and Non-Continuously Monitored Tests.

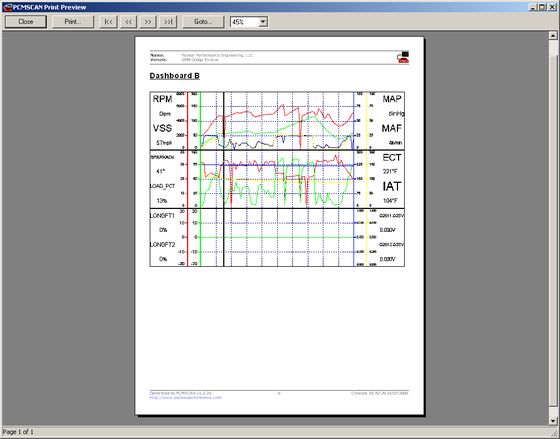

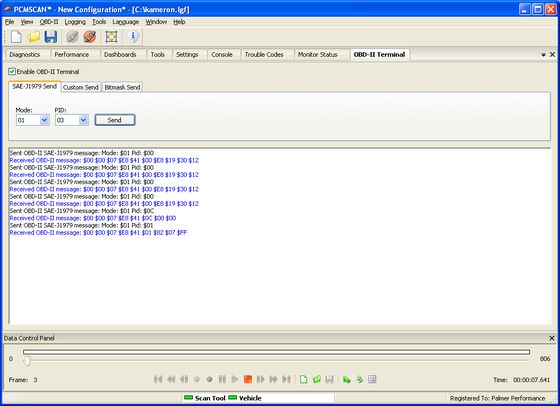

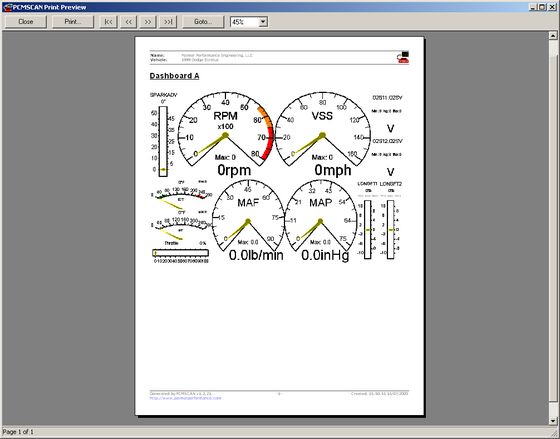

Miscellaneous -Full support for printing and print preview. -All of the different views, including the virtual dashboards, support printing/print preview. -For those who possess a knowledge of the OBD-II protocol, PCMSCAN provides an OBD-II Terminal where you can send custom commands to the vehicle. -For the power users out there, PCMSCAN™ now has built-in Javascripting support to do custom calculations on OBD-II parameters and data. -Configurable alerts system - the alerts system allows you to configure the software to monitor any parameter(s) you like. When the specified conditions are met, the software will automatically play a sound (to warn you if you are driving) or insert a bookmark for you into the logged data that is being recorded.
PCMSCAN supports the following OBD-II interface adapters: -Autotap AT1, AT2, AT3, AT123 (v2.x) -VIA LDV100, LDV200, LDV300, LDV123 -Multiplex Engineering T16 -ELM320, ELM322, ELM323 (v2.x) -ELM327 (all versions) -Any SAE-J2534 compliant OBD-II interface. Download demo version: Software homepage: |
